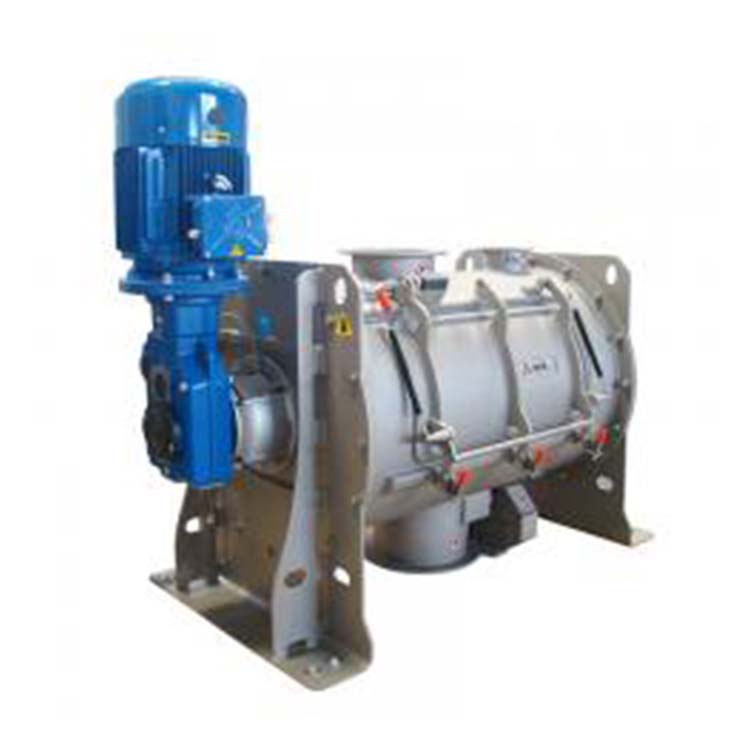

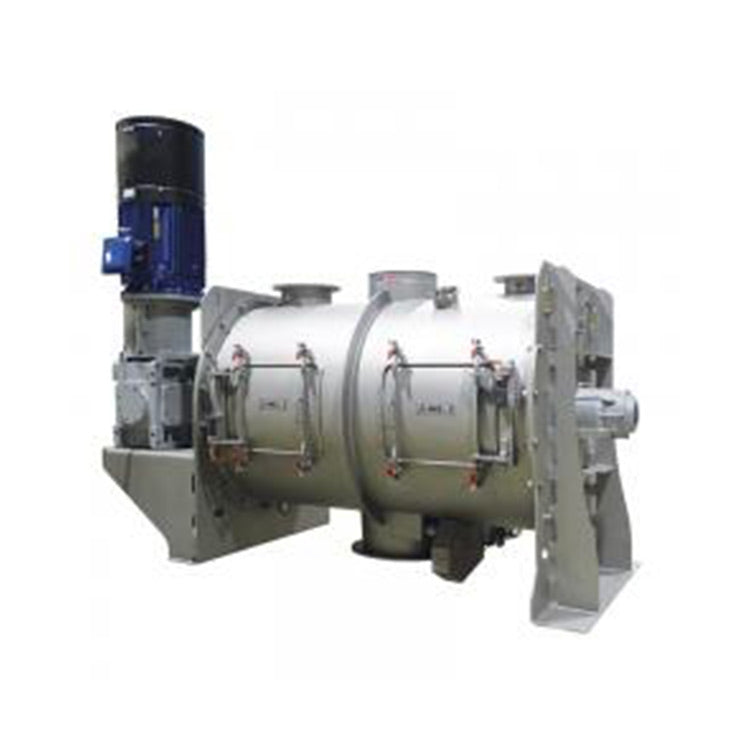

Mix SRL Batch Mixers
Mix SRL Batch Mixers
Achieve precise mixing and processing of powders, granules, flakes, fibers, and pastes with our reliable batch mixers. Designed for wetting solids with single or multiple liquids, granulation through binding liquid injection, and film coating by sequential application of liquids and powders. These mixers also offer heating, cooling, and temperature control to maintain optimal processing conditions. Perfect for concrete, quarry, chemical, food, and pet care industries. Fast shipping and expert support available throughout the UK & Ireland.
Suitable for the following production processes:
- Mixing of powders / granules / flakes / fibers / pastes.
- Wetting of solids with one or more liquids.
- Granulation by injecting a binding liquid.
- Film coating by injecting a liquid on a powder and then adding a second powder.
- Heating /cooling / temperature keeping
Main features:
- Short mixing time.
- Extremely high mixing quality.
- Batches with repeatable results
- Mixing ratio 1/100,000.
- Coefficient of variation (CV): ≤ 3 %.
Techanical features:
- Batch size: from 65 to 28,000 liters (net).

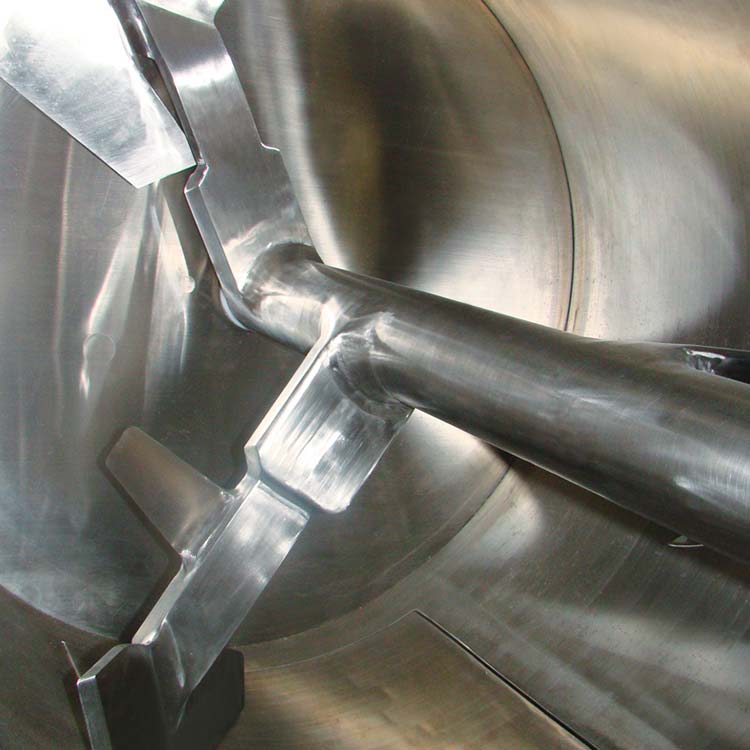

- Mixing tools: ploughshare / ploughshare with toothed design / Mix Paddle / Mix Paddle with toothed design.
- Material of costruction: carbon steel / Hardox 450 / AISI 304 / AISI 316 / AISI 316Ti.
- Inspection door complete with safety electric lock.
- Discharge door with round profile, building the bottom side of the mixing chamber.
- Rotor shaft with turned and coaxial ends.
- Rotor shaft sealing system with packing seals and wear resistant ferrules to protect the rotor shaft, prepared for flushing with air / nitrogen.
Options Available:
- Declaration of conformity for contact with food according to regulations 1935/2004 EC and 2023/2006 EC.
- Declaration of conformity Atex II 1/3D Ex h IIIB T135°C Da/Dc (Inside Zone 20, Outside Zona 22).
- Wolfram carboide coating on mixing tools.
- Liquid injection system.
- Side mounted high speed choppers / Homogenizers.
- Pneumatic Sampler & Pneumatic Panel.
- Heat exchanger on mixing chamber for heating / cooling processes.
- Big bomb door on the whole length of the mixing chamber, to get an almost residue-free discharge in the shortest time.
- Pneumatic cleaning of the mixing chamber.
- Different finishes of parts in contact with product available on request.
