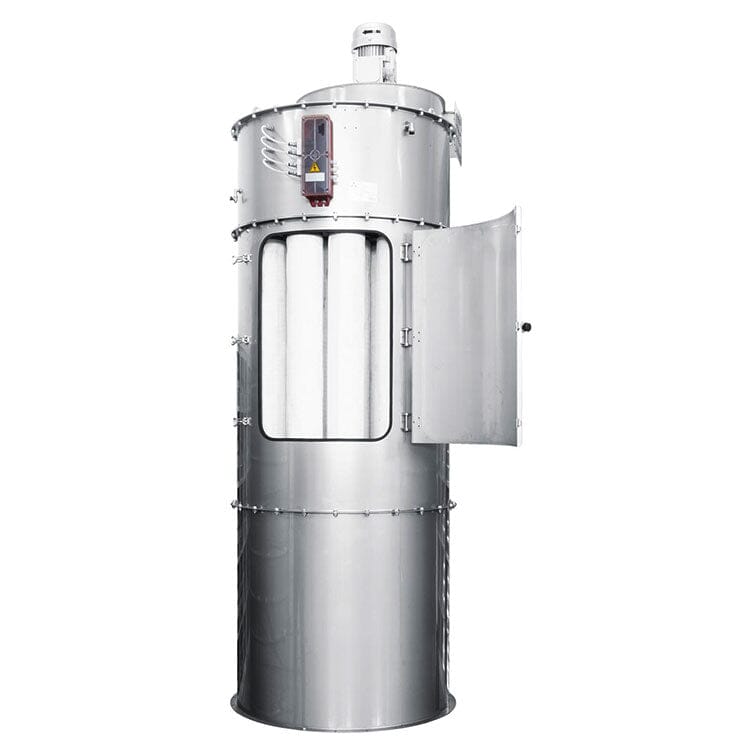

Mix SRL Fan Assisted Filter

Mix SRL Fan Assisted Filter

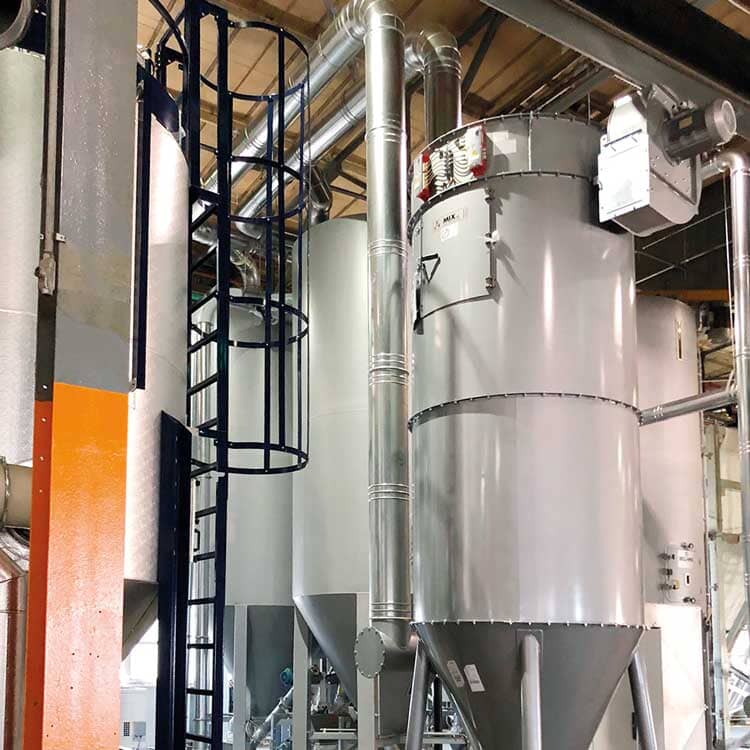

Enhance dust filtration efficiency with fan assisted filters featuring forced aspiration for effective dust capture during silo filling processes. Designed to prevent positive pressure issues and maintain air quality, these filters comply with environmental regulations. Featuring jet-pulse cleaning, bag or cartridge filter elements, and a fan motor range from 0.75 to 11 kW, they cover filter areas from 1m² to 130m². Available in diameters DN350 to DN1550 with easy element removal through a side hinged inspection door, these robust filters suit diverse industrial manufacturing applications across the UK & Ireland.

Benefits:

  • Enhanced Filtration Efficiency: The integrated fan provides forced aspiration, effectively capturing dust particles during the filling process.

  • Prevention of Positive Pressure Issues: The fan-assisted design helps negate positive pressure issues in some silos, ensuring safe and efficient operation.

  • Compliance with Environmental Standards: By effectively capturing dust, the system helps maintain air quality and adhere to environmental regulations.

Filter Specs:

  • Suitable for Fan-Assisted Dust Removal
  • Jet-pulse Cleaning by Compressed Air
  • Equipped with a fan with a motor power of 0.75 to 11 kW
  • Bag or Cartridge Filter Elements
  • Available Filter Area from 1m² to 130m²
  • Removal of the Filter Elements (raw gas side) through the hinged inspection door on the side
  • Available diameters from DN350 to DN1550
  • Parts in contact with the product are in Mild Steel or Stainless Steel
