Mix SRL Fan Assisted Filter

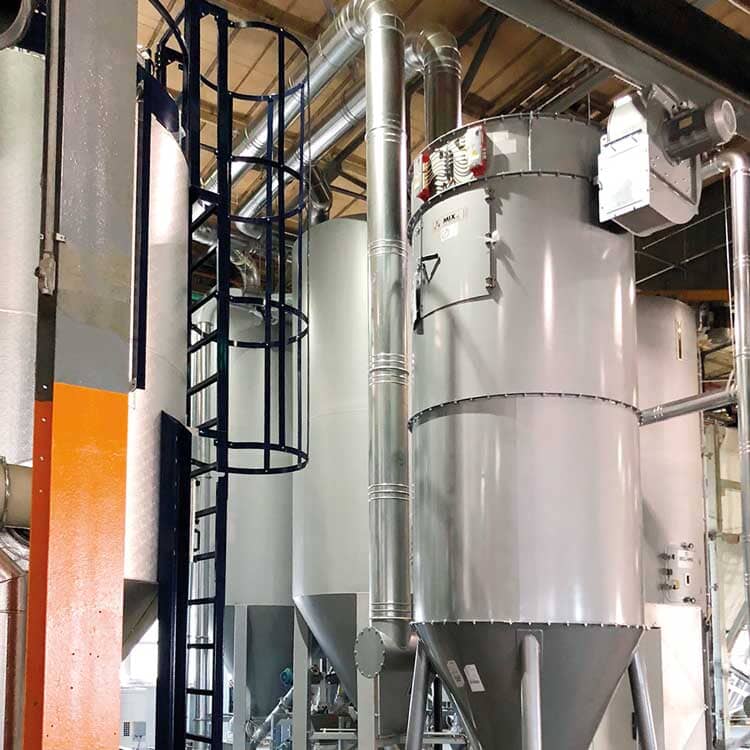

A fan-assisted silo venting filter is designed to efficiently manage the air displaced during the filling of silos, particularly those handling powdered or dust products. By incorporating a fan unit, this system ensures effective filtration and prevents the escape of dust into the environment, thereby maintaining air quality and compliance with environmental regulations.

Benefits:

• Enhanced Filtration Efficiency: The integrated fan provides forced aspiration, effectively capturing dust particles during the filling process.

• Prevention of Positive Pressure Issues: The fan-assisted design helps negate positive pressure issues in some silos, ensuring safe and efficient operation.

• Compliance with Environmental Standards: By effectively capturing dust, the system helps maintain air quality and adhere to environmental regulations.

Filter Specs:

• Suitable for Fan-Assisted Dust Removal
• Jet-pulse Cleaning by Compressed Air
• Equipped with a fan with a motor power of 0.75 to 11 kW
• Bag or Cartridge Filter Elements
• Available Filter Area from 1m² to 130m²

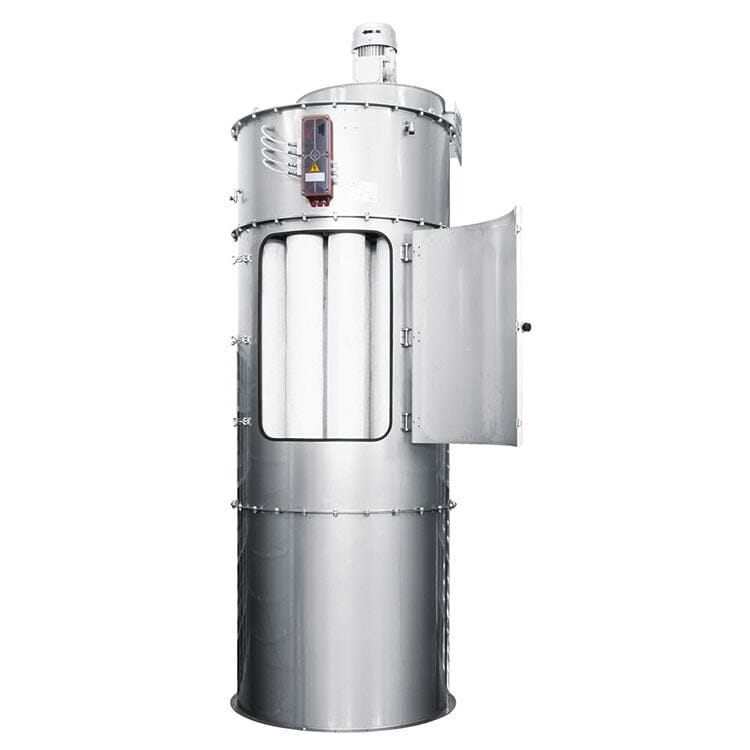

• Removal of the Filter Elements (raw gas side) through the hinged inspection door on the side
• Available diameters from DN350 to DN1550
• Parts in contact with the product are in Mild Steel or Stainless Steel
