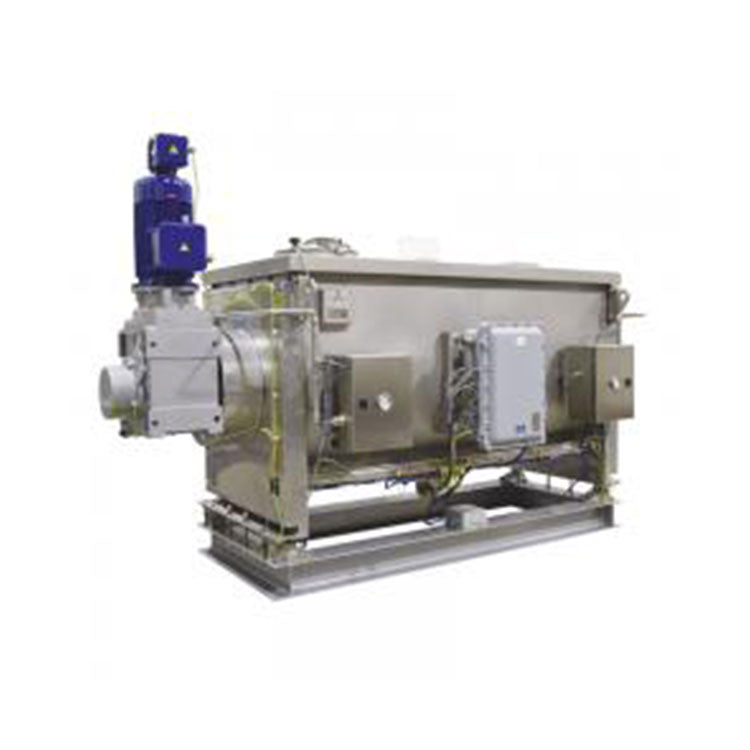

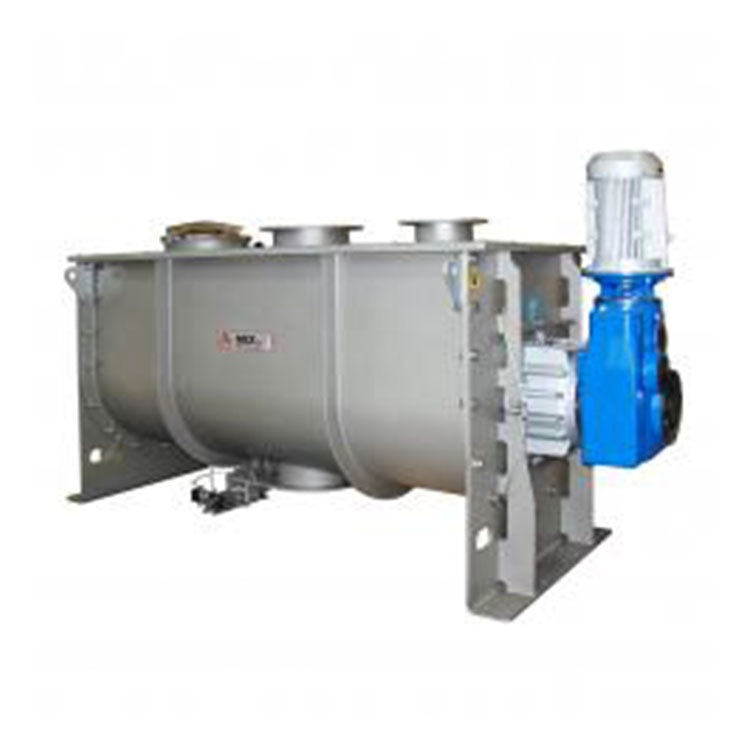

Mix SRL Ribbon Mixers

Mix SRL Ribbon Mixers

Suitable for the following production processes:
  • Mixing of powders / granules / flakes / fibers / pastes.
  • Wetting of solids with one or more liquids.
  • Heating /cooling / temperature keeping.
  • Keeping the product in movement (stirred bunker).
Main features:
  • Short mixing time.
  • High mixing quality.
  • Batches with repeatable & perfect results.
  • Gentle mixing.
  • Low maintenance.
Techanical features:
  • Batch size: from 80 to 35,000 liters (net).
  • Through "U" shaped mixing chamber.
  • Mixing tools: four ribbons, opposed two by two.
  • Material of costruction: carbon steel / Hardox 450 / AISI 304 / AISI 316 / AISI 316Ti.
  • Inspection door on the top flat cover, complete with sfaty grid and electric block.
  • Discharge door with round profile, building the bottom side of the mixing chamber.
  • Rotor shaft with turned and coaxial ends.
  • Rotor shaft sealing system with packing seals and wear resistant ferrules to protect the rotor shaft, prepared for flushing with air / nitrogen.
Options Available:
  • Declaration of conformity for contact with food according to regulations 1935/2004 EC and 2023/2006 EC.
  • Declaration of conformity Atex II 1/3D Ex h IIIB T135°C Da/Dc (Inside Zone 20, Outside Zona 22).
  • Wolfram carboide coating on the external profile of the mixing ribbon.
  • Side mounted high speed choppers / Homogenizers.
  • Pneumatic Sampler & Pneumatic Panel.
  • Heat exchanger on mixing chamber for heating / cooling processes.
  • Big bomb door on the whole length of the mixing chamber, to get an almost residue-free discharge in the shortest time.
  • Predisposition for CIP cleaning system.
  • Pneumatic cleaning of the mixing chamber.
  • Lip seal with air flushing.
  • Different finishes of parts in contact with product available on request.
  • Easy access to the mixing chamber through an inspection door complete with safety electric lock.
