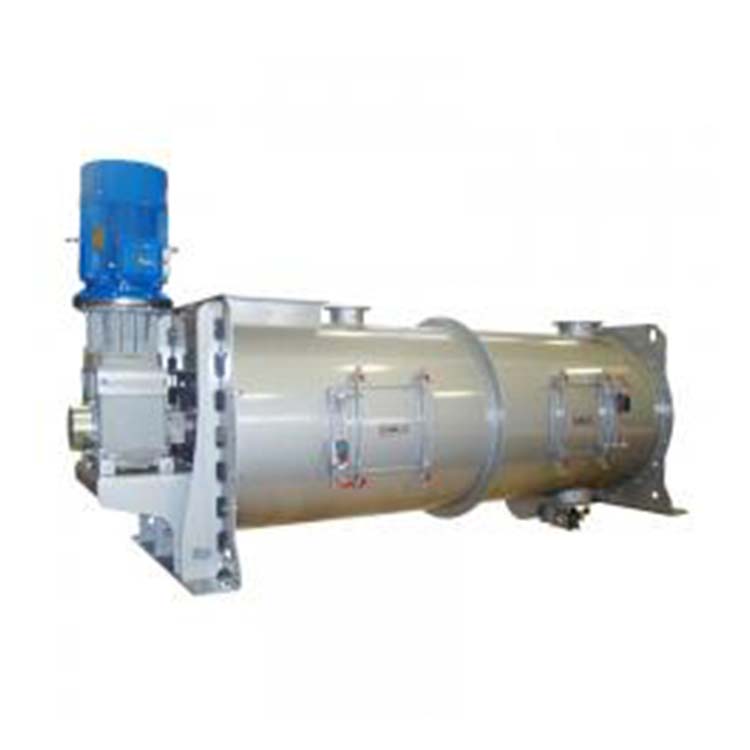

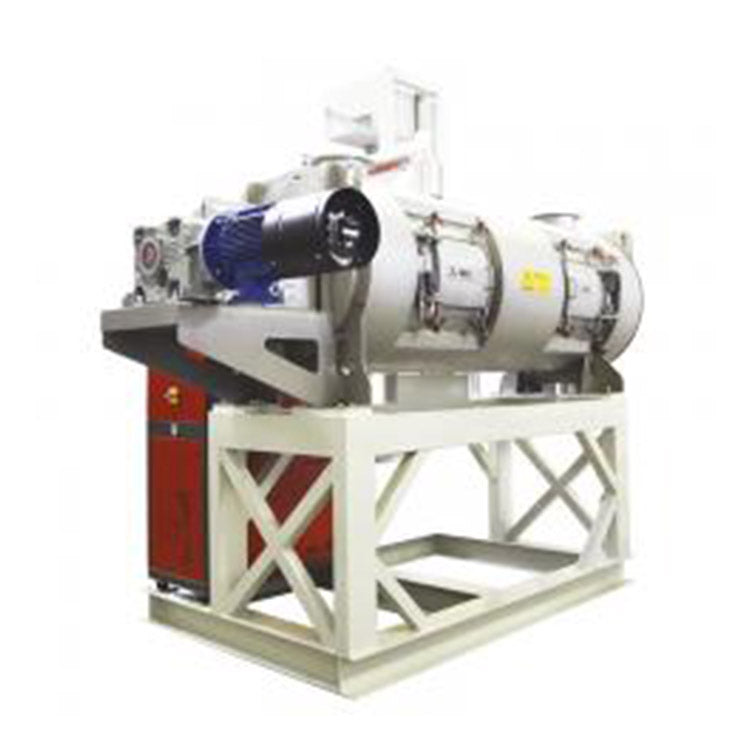

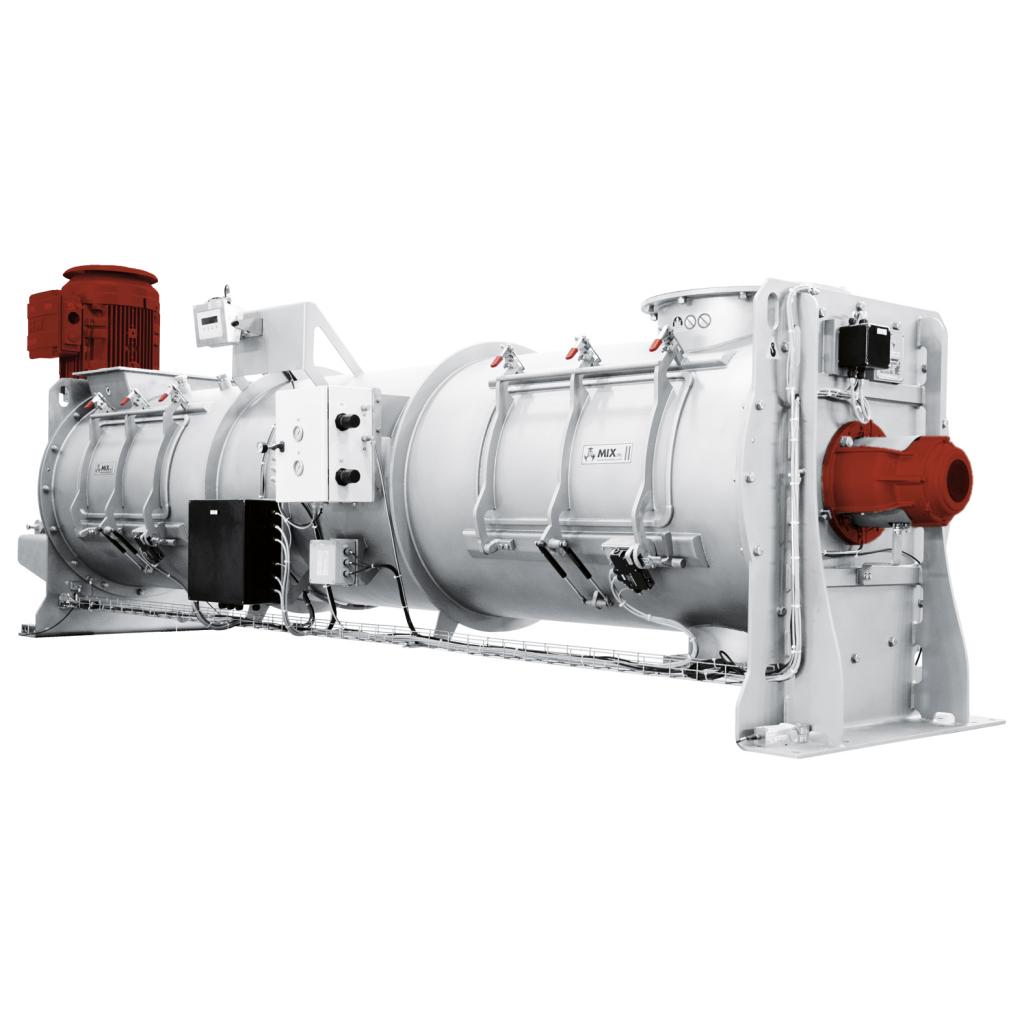

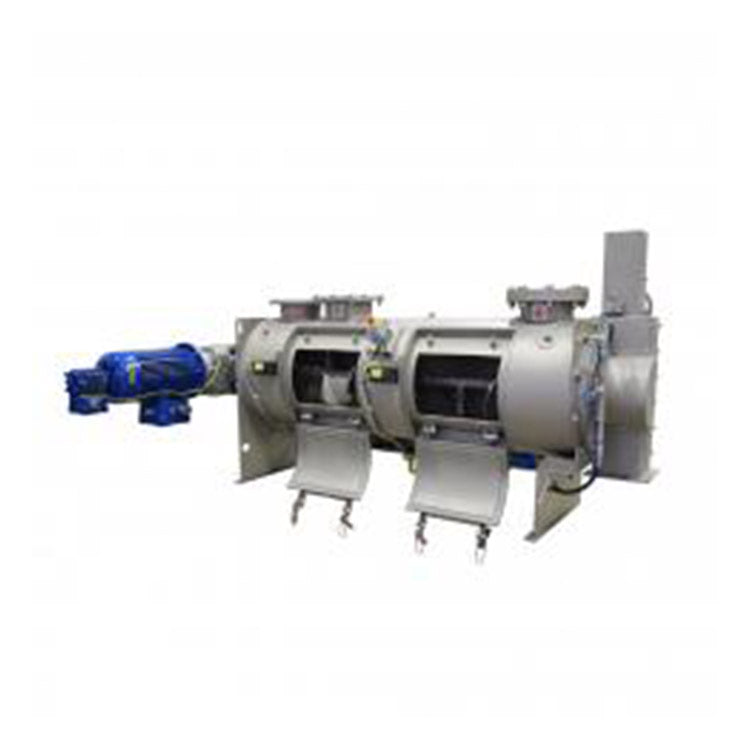

Mix SRL Continuous Mixers
Mix SRL Continuous Mixers
Suitable for the following production processes:
- Mixing of powders / granules / flakes / fibers / pastes.
- Wetting of solids with one or more liquids.
- Granulation by injecting a binding liquid.
- Film coating by injecting a liquid on a powder and then adding a second powder.
- Heating /cooling / temperature keeping.
- Mixing times adaptable to the specific process.
- Extremely high mixing quality.
- Constant quality of the product output.
- Mixing ratio 1/100,000.
- Coefficient of variation (CV): ≤ 3%.
- Low Maintenance.
- Hourly productivity: from 500 to 1,200,000 liters/h.
- Cylindrical mixing chamber.
- Mixing tools: ploughshare / ploughshare with toothed design / Mix Paddle / Mix Paddle with toothed design.
- Material of costruction: carbon steel / Hardox 450 / AISI 304 / AISI 316 / AISI 316Ti.
- Inspection door complete with safety electric lock.
- Vertical discharge door with adjustable internal diaphgrams to regulate the production capacity.
- Rotor shaft with turned and coaxial ends.
- Rotor shaft sealing system with packing seals and wear resistant ferrules to protect the rotor shaft, prepared for flushing with air / nitrogen.
- Declaration of conformity for contact with food according to regulations 1935/2004 EC and 2023/2006 EC.
- Declaration of conformity Atex II 1/3D Ex h IIIB T135°C Da/Dc (Inside Zone 20, Outside Zona 22).
- Wolfram carboide coating on mixing tools.
- Liquid injection system.
- Side mounted high speed choppers / Homogenizers.
- Pneumatic Sampler & Pneumatic Panel.
- Heat exchanger on mixing chamber for heating / cooling processes.
- Frontal discharge door with adustable slide gate.
- Pneumatic cleaning of the mixing chamber.
- Lip seal with air flushing.
- Different finishes of parts in contact with product available on request.
